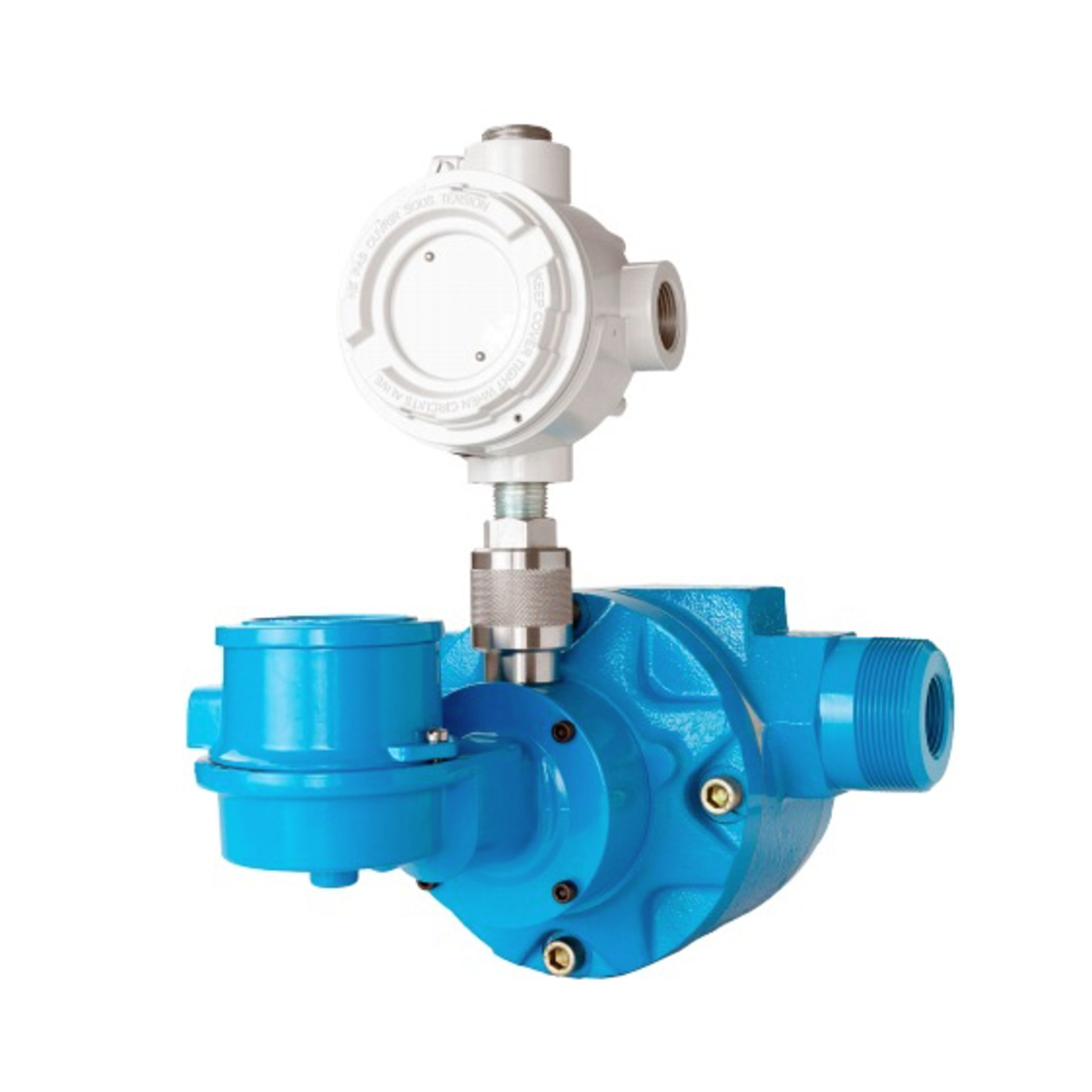

1334 Flowmeter pulse transmitter

1334 Flowmeter pulse transmitter is a newly added transmitter developed by Industries. A Flowmeter pulse transmitter (FPT) connects a Floco flowmeter to the frequency output. Providing the requisite electronic performance associated with an automation or SCADA project is best adapted for retrofitting in situ metres. The transmitter consists of a gear-like aim, which is powered by the flowmeter and placed inside a typical turbine flowmeter pickup coil’s magnetic field. When the gear teeth travel through the pickup coil an electric pulse is produced in the same way a pulse is created by the rotation of a turbine meter’s rotor blades. On a 2-in flowmeter the FPT will produce up to 126 pulses per galUS.

If you need a different model other than those listed, please contact us at info@controlssupplychain.com
Models F-500 | F-2500

SKU: CSC78 Categories: , Tag:

Description

SPECIFICATIONS

1334 Flowmeter pulse transmitter

Additional electronics of the measurement system are required to satisfy the necessary specifications of the performance signal. In applications that need a high-amplitude 2-V to 24-V square wave signal, provides the Model 1334 with an economical driven coil as an alternative. In this application the technical certifications are separate from those for the regular model. Although the regular FPT is appropriate for 250 degF [121 degC], there are also available temperature levels up to 450 degF [232 degC]. Explosion-proof versions have an electrical interface of 1/2-in female national pipe thread (NPT) whereas the inherently secure model has an NPT center of 1 in man.

Approval classification options: ATEX, explosion-proof, Exd IIc, T4, –40 to 212 degF [–40 to 100 degC]. CSA, explosion-proof, Class I, Groups B, C, D; Class II, Groups E, F, G; Class III; Enclosure 4 (US and Canadian electrical code). CSA, intrinsically safe, Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III; Enclosure 4 (with approved barrier).
